Haitian Jupiter II Series

Space Saving
Two-Platen

  • Available from 4,500 to 66,000 kN
  • Optimized clamping system for more dynamics and short dry-cycle times
  • The compact design is unbelievably space-saving
  • Energy saving Mars Technology inside
  • Fast response time and high positional accuracy (± 0,05 %)
  • High-performance KEBA or TECHMATION control

Haitian Jupiter II Series

Technology to the point

The energy-saving approach afforded by two-platen technology has been ongoing considerable successes ever since its introduction to the market in 2013 and continues to gain ground. For 2017, the Jupiter reached nearly 800 units, which is an increase of nearly 35% in terms of sales.

The innovative Haitian Jupiter II Series with clamping force from 4,500 to 66,000 kN and its large mold open strokes gives the processor access to an unusually broad process spectrum for the most varied applications e.g., in fields in the automobile sector, the packaging industry or production of household goods.

Quick Check

DRIVE
TECHNOLOGY

Servo-hydraulics

CONTROL
SYSTEM

KEBA or TECHMATION

CLAMPING
FORCE

4,500 – 66,000 kN

CLAMPING
SYSTEM

Two-platen

Max. TIE BAR
DISTANCE

3,200 x 2,600 mm

SHOT
VOLUME

792-80,170 cm³

Discover Jupiter II Series

blanc
Compact two-platen design
With twin cylinder design

The structure of clamping unit is more reasonable because of the tie bar suspension structure which reduces the load.

Fast and Balanced Clamping Structure

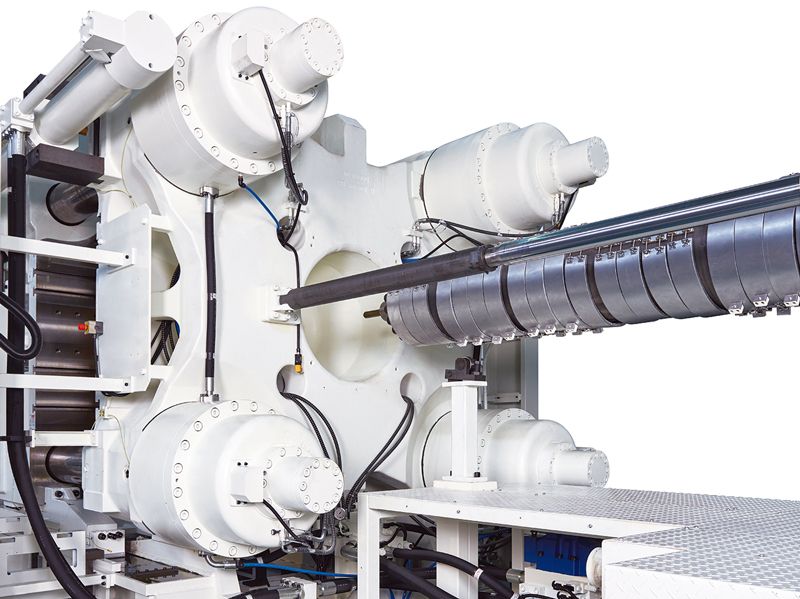

haitian-plastics-machinery-jupiter-series-04_Mold-Break-Cylinder
Optimized design of clamping cylinders

Four short stroke clamping cylinders for accurate mold height control with closed loop position feedback, ensures the mold is clamped with parallel movement.

Reliable nut lock operation

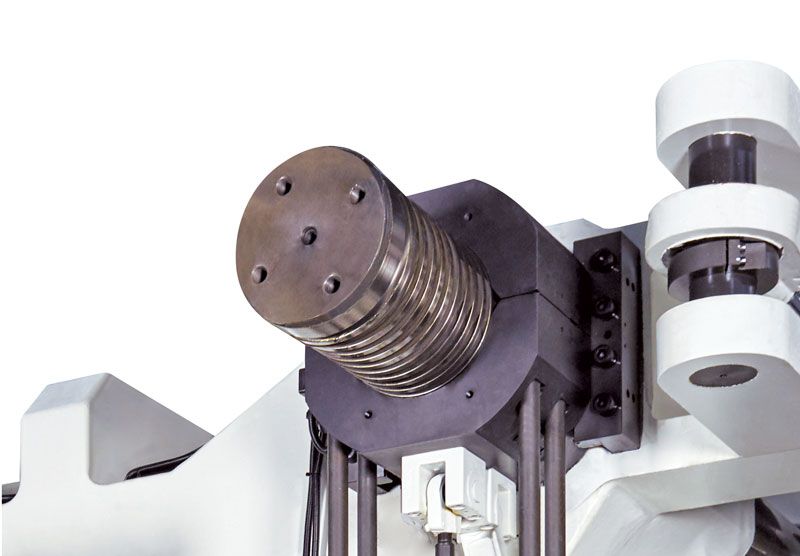

haitian-plastics-machinery-jupiter-series-lock-nut
Reliable lock nut operation

Parallel lock nut operation ensures fast and accurate response.

New Moving Platen Structure For big Molds
haitian-plastics-machinery-jupiter-series-moving_platen
Large moving platen supports ensures high platen

Rigidity during movement with increase mold weight loading. Reduced platen vertical movement for long core molds.

New Injection Unit

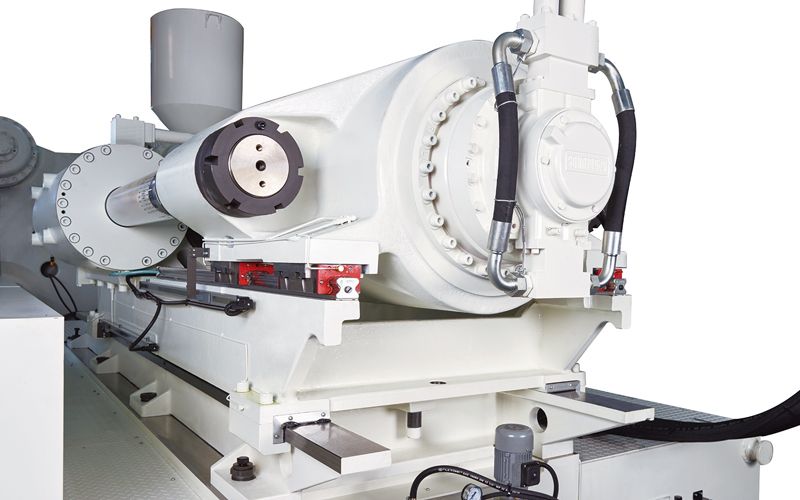

haitian-plastics-machinery-jupiter-series-injection_unit

Low friction-high precision guiding mechanism for perfect screw guidance.

Energy Saving Drive System - Mars Technology
Patented Servomotor to Gearpump Design

The direct drive connection between the servo-motor and the gear pump provides excellent drive torque giving maximum acceleration and deceleration speeds for all machine functions. The Jupiter II Series is also equipped with the innovative “Mars Technology”.

Read more

Control Technology
haitian-plastics-machinery-jupiter-series-screen_softwarecontrol_01
Software & Control

• High-performance KEBA or TECHMATION control
• Mold profile data memory
• New performance for production monitoring
• User-friendly user interface
• Comprehensive software functions
• Clear and simple button to re-layout
• Shortcut configuration for clear identification
• Multi-language available
